SKU#: 50901-177-SQ052850
Square Recess Bits
Universal Use
Widely used in electronics, furniture, automobile, vessel, aviation and so on.
FEATURE:
* S2 Modified Steel and an optimised heat treatment process results in extra-hard quality for adequate performance;
* Professional heat treatment and processing, HRC 58-60;
* Surface finish: sand blasting, blackening, nickel plating;
* Precision design reduces stripping.
SPECIFICATION:

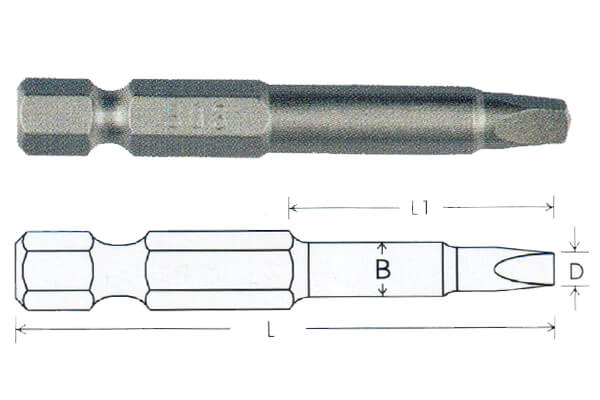

| Mode No. | D (#) | B (mm) | L1 (mm) | L (mm) | PC/CTN | NW/GW (kg) |
| SQ052850 | 0# | 5 | 28 | 50 | 1000 | 12/13 |
| SQ152850 | 1# | 5 | 28 | 50 | 1000 | 12/13 |
| SQ262850 | 2# | 6 | 28 | 50 | 1000 | 12/13 |
| SQ362850 | 3# | 6 | 28 | 50 | 1000 | 12/13 |
| SQ155075 | 1# | 5 | 50 | 70 | 1000 | 18/19 |
| SQ2675100 | 2# | 6 | 75 | 100 | 1000 | 24/25 |
| SQ30100150 | 3# | 6.35 | 100 | 150 | 500 | 17/18 |
