HSS Roughing Ball Nose End Mills

Home > Products > Drill Bits > HSS End Mills > SKU#: 40401J

SKU#: 40401J

HSS Roughing Ball Nose End Mills

Excellent performance in high speed machining

Share This Product:

Description

SPECIFICATIONS:

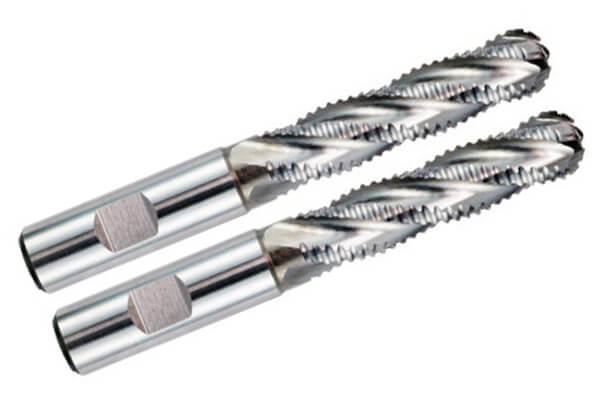

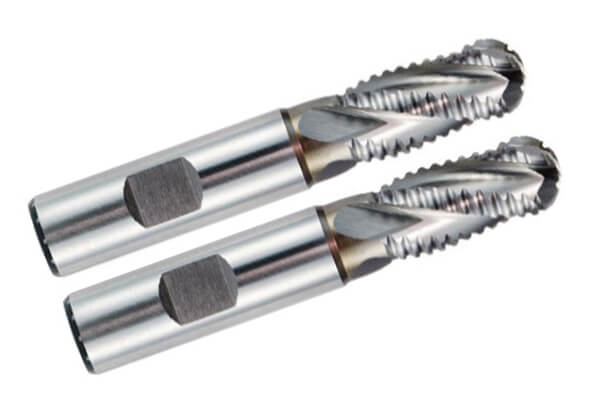

HSS Roughing Ball Nose End Mills

Manufacturing Process: Fully Ground
Spiral Angle: Helix 30
Flutes: 4 or 6 or 8
Type: Ball Nose
Material: HSS 4341, 9341, M2, M35, M42
Finishing: Bright, TiN, TiNAL

Art No.	Diameter	Shank Size	Flute Length	Allover Length	No.s of Flutes
40401J060	6	6	13	57	4
40401J070	7	10	16	66	4
40401J080	8	10	19	69	4
40401J090	9	10	19	69	4
40401J100	10	10	22	72	4
40401J110	11	12	22	79	4
40401J120	12	12	26	83	4
40401J140	14	12	26	83	4
40401J160	16	16	32	92	4
40401J180	18	16	32	92	4
40401J200	20	20	38	104	4
40401J220	22	20	38	104	4
40401J240	24	25	45	121	4
40401J250	25	25	45	121	4
40401J260	26	25	45	121	4
40401J280	28	25	45	121	6
40401J300	30	25	45	121	6
40401J320	32	32	53	133	6
40401J360	36	32	53	133	6
40401J400	40	40	63	155	6
40401J450	45	40	63	155	6
40401J500	50	50	75	177	6

HSS Roughing Ball Nose End Mills ----Long Series

Manufacturing Process: Fully Ground
Spiral Angle: Helix 30
Flutes: 4 or 6 or 8
Type: Ball Nose
Material: HSS 4341, 9341, M2, M35, M42
Finishing: Bright, TiN, TiNAL

Art No.	Diameter	Shank Size	Flute Length	Allover Length	No.s of Flutes
40401J060L	6	6	24	68	4
40401J070L	7	10	30	80	4
40401J080L	8	10	38	88	4
40401J090L	9	10	38	88	4
40401J100L	10	10	45	95	4
40401J110L	11	12	45	102	4
40401J120L	12	12	53	110	4
40401J140L	14	12	53	110	4
40401J160L	16	16	63	123	4
40401J180L	18	16	63	123	4
40401J200L	20	20	75	141	4
40401J220L	22	20	75	141	4
40401J240L	24	25	90	166	4
40401J250L	25	25	90	166	4
40401J260L	26	25	90	166	4
40401J280L	28	25	90	166	6
40401J300L	30	25	90	166	6
40401J320L	32	32	106	186	6
40401J360L	36	32	106	186	6
40401J400L	40	40	125	217	6
40401J450L	45	40	125	217	6
40401J500L	50	50	150	252	6
