● Highly efficient grinding performance
● Applications from rough grinding to honing
● Wet or dry grinding operations
● Ease of workability for the operator
● Cost effective

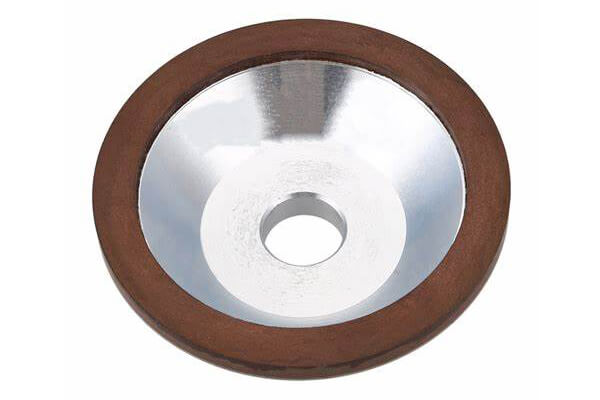

Resin bond grinding wheels are formulated for specific grinding applications. Our proprietary formulations were derived from years of technical input from our engineering team and clients.
Due to the degree of elasticity, Resin bond grinding wheels promote relatively low in-feed forces which provides for a cool running and smooth grinding wheel with superior performance and finishes.
Based on the material, application, and requirements, resin wheels can be formulated for wet or dry grinding applications.
SPECIFICATION:
|
Art No.
|
Outer Diameter(D)
|
Inner Diameter (Hole)
|
Segment Size
|
||
|
Inch
|
Metric
|
Inch
|
Metric
|
||
|
20208007
|
2"
|
50
|
5/8"
|
16
|
5x3
|
|
20208008
|
3"
|
75
|
5/8"
|
16
|
5x3
|
|
20208009
|
4"
|
100
|
5/8"
|
16
|
8x5
|
|
20208010
|
5"
|
125
|
5/8"
|
16
|
8x5
|
|
XLD16150B
|
6"
|
150
|
1-1/4"
|
32
|
8x5
|
